Parameter Component

> > > > >

The Parameter Component document defines valid components that can be associated with a parameter. Parameter components indicate a general or specific piece of OLE functionality to which a parameter applies. Some Parameter Components are generic (batch, lookup, all) while others are very specific and refer to particular documents or even specific tabs or fields on documents.

Only members of the KR-SYS Technical Administrator or OLE-SYS Manager role can create or edit Parameter Component documents.

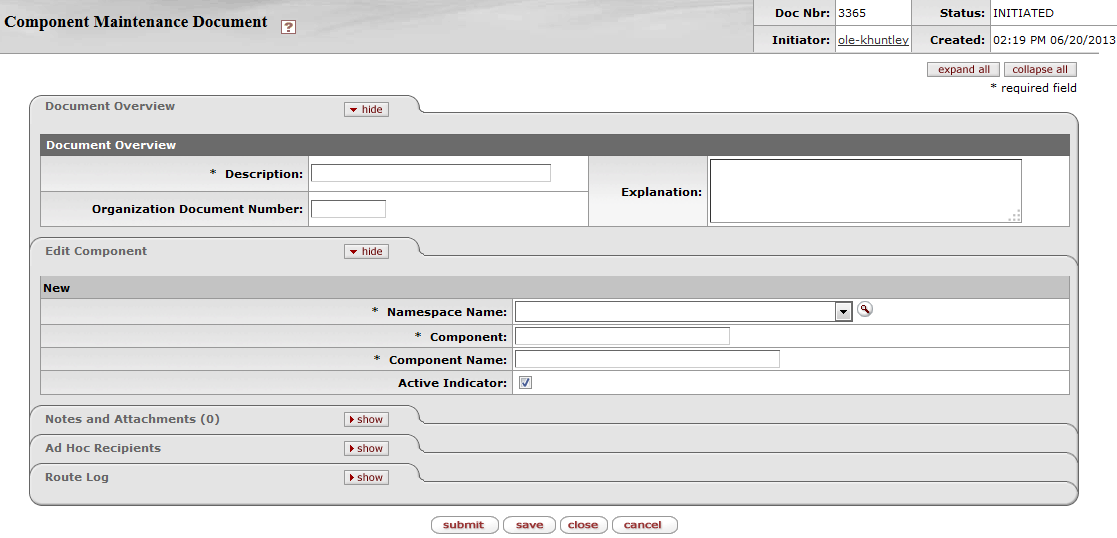

The Parameter Component document includes the Edit Component Type tab.

Edit Component tab definition

Title

Description

Namespace Name

Required. Select the appropriate Namespace code for the parameter from the Namespace Name list or search for it from the lookup.

Component

Required. Enter the parameter component code or search for it from the Parameter Component lookup .

Component Name

Required. Enter the descriptive name of the parameter component being defined.

Active Indicator

Required. Leave checked to indicate that this parameter component is active and can be associated with parameters. Uncheck the box to inactivate this component and make it an invalid choice.
