org.kuali.rice.krms.impl.ui

Class AgendaInquiryController.AgendaItemChildAccessor

java.lang.Object

org.kuali.rice.krms.impl.ui.AgendaInquiryController.AgendaItemChildAccessor

Enclosing class:

AgendaInquiryController

protected static class AgendaInquiryController.AgendaItemChildAccessor
extends Object

This class abstracts getting and setting a child of an AgendaItemBo, making some recursive operations require less boiler plate.

The word 'child' in AgendaItemChildAccessor means child in the strict data structures sense, in that the instance passed in holds a reference to some other node (or null). However, when discussing the agenda tree and algorithms for manipulating it, the meaning of 'child' is somewhat different, and there are notions of 'sibling' and 'cousin' that are tossed about too. It's probably worth explaining that somewhat here:

General principals of relationships when talking about the agenda tree:

• Generation boundaries (parent to child) are across 'When TRUE' and 'When FALSE' references.
• "Age" among siblings & cousins goes from top (oldest) to bottom (youngest).
• siblings are related by 'Always' references.

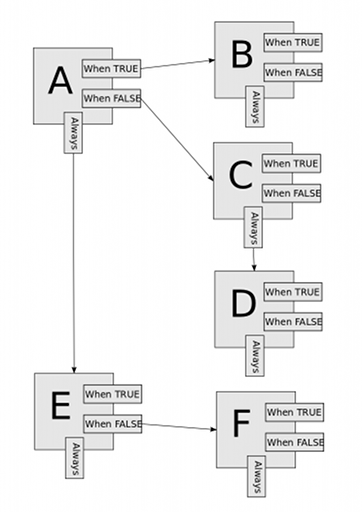

This diagram of an agenda tree and the following examples seek to illustrate these principals:

Examples:

• A is the parent of B, C, & D
• E is the younger sibling of A
• B is the older cousin of C
• C is the older sibling of D
• F is the younger cousin of D

Method Summary

Methods

Modifier and Type	Method and Description
AgendaItemBo	getChild(AgendaItemBo parent)
void	setChild(AgendaItemBo parent, AgendaItemBo child) Sets the child reference and the child id

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Method Detail

getChild

public AgendaItemBo getChild(AgendaItemBo parent)

Returns:

the referenced child

setChild

public void setChild(AgendaItemBo parent,
            AgendaItemBo child)

Sets the child reference and the child id
