Kuali Rice 2.3.2-SNAPSHOT Online Help

Administration > Identity > Reference > Address Type

The Address Type Lookup displays the types of addresses that may be associated with Person records in KIM.

Document Layout

Figure 1.1. Address Type Lookup with results

Table 1.1. Address Type Lookup results definition

Title	Description
Address Type Code	Display-only. The unique code for this type of address.
Address Type Name	Display-only. The familiar title of this address type.
Display Sort Code	Display-only. An alphabetical character used to determine the order in which address types are displayed in the dropdown list on the Person document.
Active Indicator	Display-only. Indicates whether this address type is active (in which case the system displays it in the Address Type dropdown list on the Person document).

Administration > Identity > Locations > Campus

The CampusMaintenanceDocument is used to identify the different fiscal and physical operating entities of an institution. A campus may be identified as a fiscal entity, a physical entity, or both.

When the user chooses the Campus option, the system displays the Campus Lookup screen. After the user selects a campus or clicks the create new button, the system presents the CampusMaintenanceDocument.

Document Layout

Figure 2.1. Campus Maintenance Document, create mode

The Campus Maintenance Document includes the Edit Campus tab.

In edit mode, the Edit Campus tab presents a display-only set of fields on the left and editable fields on the right in which the user may enter changes.

Table 2.1. Edit Campus tab definition

Title	Description
Campus Code	Required. The unique identifying code assigned to a campus.
Campus Name	Required. The familiar name for a specific university campus.
Campus Short Name	Required. An abbreviated name for a specific campus; used in reports in which space is limited.
Campus Type Code	Required. Indicates the type of campus. Valid values are: B - Both F - Fiscal P - Physical
Active Indicator	Check box for showing the Campus as an active one for use.

Administration > Identity > Reference > Campus Type

When the user selects Campus Type from the Administration menu tab, the system displays the Campus Type Lookup. From this screen, the user may either create a new type or search for an existing type. This defines the valid types of campuses that can be selected when creating a new campus.

After performing a search based on user-specified criteria, the system displays a results table. The user may then choose to edit or copy a retrieved record.

After the user selects create new, edit, or copy, the system displays the Campus Type Maintenance document. This document allows users to add and maintain campus types.

Document Layout

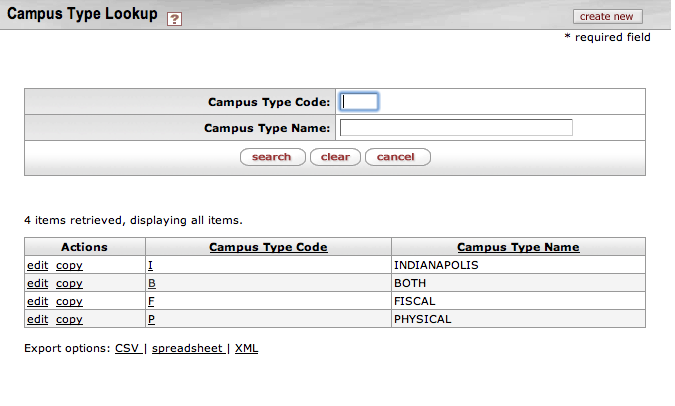

Figure 3.1. Campus Type Lookup document

The Campus Type lookup document includes:

Table 3.1. Edit Campus Type tab definition

Title	Description
Campus Type Code	A unique code to identify this type of campus.
Campus Type Name	A descriptive name for this campus type.

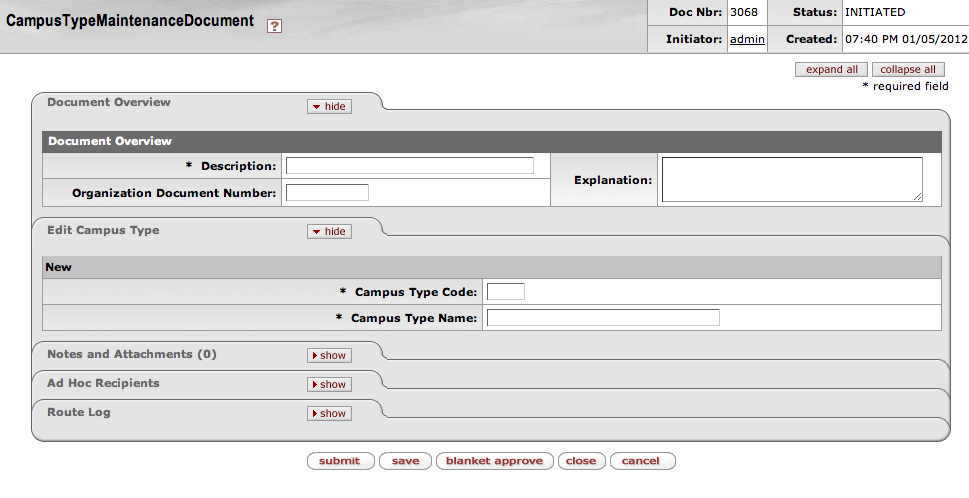

Figure 3.2. Campus Type Maintenance document

The Campus Type maintenance document includes:

Table 3.2. Edit Campus Type tab definition

Title	Description
Campus Type Code	Required. Enter a code to identify this type of campus.
Campus Type Name	Required. Enter a descriptive name for this campus type.

Administration > Identity > Locations > Country

The Country Maintenance document is used to assign specific identifying codes to country names.

When the user chooses the Country option from the menu, the system displays the Country Lookup screen. After the user selects a country or clicks the create new button, the system presents the Country Maintenance document.

Document Layout

Figure 4.1. Country Maintenance document, create mode

The Country Maintenance document includes the Edit Country tab.

In edit mode, the Edit Country tab presents a display-only set of fields on the left and editable fields on the right in which the user may enter changes.

Table 4.1. Edit Country tab definition

Title	Description
Country Code	Required. A unique identifying code assigned to a country.
Country Name	Required. A familiar name of a specific country.
Country Restricted Indicator	Required. Check the box to indicate that that the country is restricted. This has implications for the Purchasing /Accounts Payable module where restricted countries may not be used in Vendor addresses. Clear the check box if it is not.
Active Indicator	Indicates whether this country code is active or inactive. Remove the check mark to deactivate this country code.

Administration > Identity > Locations > County

The County Maintenance document is used to assign specific identifying codes to county names.

When the user chooses the County option from the Administration menu tab, the system displays the County Lookup screen. After the user selects a county or clicks the create new button, the system presents the County Maintenance document.

Document Layout

Figure 5.1. County Maintenance document, create mode

The County Maintenance document includes the Edit Counties tab.

In edit mode, the Edit Counties tab presents a display-only set of fields on the left and editable fields on the right in which the user may enter changes.

Table 5.1. Edit Counties tab definition

Title	Description
Country Code	The country code for the country in which this county is located.
County Code	A unique identifying code assigned to this county.
State	The state abbreviation assigned to the state in which a county is located.
County Name	Required. The familiar name of this county.
Active Indicator	Indicates whether the county code is active or inactive. Remove the check mark to deactivate this county code.

Administration > Workflow > Document Type

The Document Type document defines basic information about the document types that exist in applications. It also defines document types specific to workflow and KIM. Many attributes of a document type not defined here are included in its workflow process definition and the data dictionary (a technical resource). The workflow process definition for a document type can be viewed using the Document Type lookup.

Document Type documents can only be created by members of the KR-SYS Technical Administrator or suitable application roles and they do not route for approval.

Document Layout

Figure 6.1. Document Type document

The Document Type document contains the Edit Document Type tab and the Fields Available for Retroactive Application tab.

Edit Document Type Tab

Figure 6.2. Edit Document Type tab

Table 6.1. Edit Document Type tab definition

Title	Description
Parent Name	Required. Every document type must answer to another document type in a parent/child relationship. Use the lookup to search for the document type to which this document type will answer. Document types can inherit important attributes from their parent document types, including permissions and responsibilities.
Name	Required. The common name of the document type.
Document Handler URL	Optional. (Technical) Identifies the basic URL that will take a user to this document type.
Notification From Address	Optional. The email address that will appear as the 'From' address on any action list notifications sent by workflow for this document type. This allows several applications using workflow to maintain separate notification email addresses.
Active	Required. The box should be checked if the document type is active and available for use. Uncheck the box to inactivate the document type.

Fields Available for Retroactive Application Tab

These are Document Type attributes that can be edited retroactively if need be. This means that should you decide to change one of these values for a given document type it is possible to apply the change retroactively to any documents of this type already created. For example, if you decided to change the Label of the Budget Adjustment document type you could choose that have that label change apply to historical Budget Adjustment documents in your KFS system.

Figure 6.3. Fields Available for Retroactive Application tab

Table 6.2. Fields Available for Retroactive Application tab definition

Title	Description
Label	Optional. The Label appears in most places where document types are displayed in results (including the action list and document search screens) and is commonly longer than the document Name, which is often an abbreviation.
Description	Optional. A text description of this document type.
Help Definition URL	Optional. (Technical) Identifies the URL where the online help content for this document type resides.
Document Search Help URL	Optional. (Technical) Identifies the URL where the online document search help content for this document type resides.
Apply Label Change Retroactively	Optional. Check this box only when updating an existing document type and only if you wish the fields on this tab to be updated on previously created versions of documents of this type.

Document Type Inquiry

The Document Type Inquiry contains some additional fields that are not defined on this document but referenced from their source (either the corresponding workflow process definition or data dictionary information). These fields are defined below.

Figure 6.4. Document Type Inquiry

Table 6.3. Document Type Inquiry definition

Title	Description
Parent ID	Display only. The unique, system-generated ID number that identifies the parent document of this Document Type.
ID	Display only. The unique, system-generated ID number that identifies this document type.
Post Processor Class	Display only. (Technical.) Identifies the post processor this document type calls upon reaching a completed workflow status (usually 'Final' or 'Processed'). The post processor is the code that tells and application what tables to update when a document is approved.
Service Namespace	Display only. The namespace (large functional category) that is associated with this document type.

Administration > Identity > Identity > Group

The Group document allows you to associate persons, roles or other groups with each other in order to assign the same role to all group members.

Groups have no inherent permissions or responsibilities of their own. Only by associating a group with a role do the members of that group become associated with permissions and responsibilities.

Document Layout

The Group document includes Document Overview, Overview, Attributes and Assignees tabs.

Figure 7.1. Group document

Overview Tab

This tab identifies the group with a unique system-assigned ID number, a namespace and a name. Each group also has a type that specifies any qualifiers that this group might require.

Figure 7.2. Group Overview tab

Table 7.1. Overview tab definition

Title	Description
Group ID	Display-only. The unique system-assigned ID number that identifies this group. The system completes this field when you submit the document.
Type Name	Required. The type of attributes that will be associated with this group. Some group types, such as the Default Type, require no attributes to be collected. When creating a new group, you must select the Type before the system can generate the document.
Group Namespace	Required. An indicator that associates the group with a particular application and module.
Group Name	Required. The common descriptive name by which this group is known.
Active	Check this box to indicate that this Group is active and is a valid choice for assigning to roles. Uncheck the box to indicate that this group is inactive (no longer valid when making role assignments).
Group Description	An optional explaination of the group's need and use.

Administration > Configuration > Namespace

The Namespace document allows you to add new or maintain existing namespace codes. Namespace codes are used to identify various pieces of functionality and generally correspond to large functional areas. The namespaces in an applications base data normally take the form of a Kuali application followed by one of that application's modules. For example the KFS Purchasing /Accounts Payable module would be associated with the namespace KFS-PURAP.

This document can only be initiated by members of the KR-SYS Technical Administrator role or a suitable application role and does not route for approval.

Document Layout

Figure 8.1. Namespace document

The Namespace document contains the Edit Namespace tab.

Table 8.1. Edit Namespace tab definition

Title	Description
Namespace	Required. Enter the namespace code for this namespace. The convention for most namespaces is application abbreviation and module abbreviation separated by a dash (KFS-PURAP, KR-WKFLW, etc.)
Namespace Name	Required. A longer text description for this namespace code.
Application ID	Optional. An additional namespace identifier which identifies which application should recognize this namespace code. This is generally only used in instances where the regular namespace code is not enough to make an attribute unique. This attribute is normally used directly on the Parameter document and not assigned specifically to a namespace on this table.
Active Indicator	Required. Leave checked to indicate that this namespace is active and can be associated with permissions, responsibilities, roles and Kuali data elements organized by namespace. Uncheck the box to inactivate this namespace and make it an invalid choice.

Administration > Configuration > Parameter

The Parameter document is used to define parameters and business rules in Rice and Rice Applications. A specific value of a parameter can vary based on what the parameter is used to define. Some parameters create business rules. These rules create restrictions and enforce valid values and combinations on various document types or batch processes. Other parameters simply define institution-specific values not defined elsewhere in Rice and Rice Applications. The value may, for example, be text that Rice and Rice Applications are to display in a given location or it may be a simple yes or no value to turn an option on or off.

Only members of the KR-SYS Technical Administrator or suitable application roles can create or edit Parameter documents.

The Parameter document does not route for approval.

Document Layout

Figure 9.1. Parameter document

The Parameter document includes the Edit Parameter tab. This tab is where you define the modules, type, rules, and description of the parameters.

Table 9.1. Edit Parameter tab definition

Title	Description
Namespace Code	Required. Select the appropriate Namespace code for the parameter from the Namepsace Code list or search for it from the lookup.
Component	Required. Enter the parameter component code or search for it from the Parameter Component lookup.
Application ID	Required. Enter the application namespace to identify the application to which this parameter applies. Note that the same parameter can have different values for different applications.
Parameter Name	Required. Enter the name of the parameter being defined.
Parameter Value	Required. Enter the value for the parameter. The nature of a given parameter determines what form the parameter value should take. In some cases it is text for a user to view or it could be a value such as an account number or an object code. In cases where multiple values are allowed they should be separated by a semi-colon. Consult with technical resources if you are unsure what format a specific parameter value should take.
Parameter Description	Required. Describe the purpose and usage of the parameter. The description is used for a documentation purpose.
Parameter Type Code	Required. Select the parameter type code from the Parameter Type list or search for it from the lookup. Default types include: System Configuration: Used to establish institution values not specific to validation. Document Validation: Used to establish business rules for documents.
Parameter Constraint Code	Required. Select Allowed if the parameter is to allow the defined parameter value within an application. Select Denied if the parameter is to deny the defined parameter value within the application. Consult with technical resources if you are unsure of the appropriate constraint code for a given parameter.

Administration > Configuration > Component

The Component document defines valid components that can be associated with a parameter. Components indicate a general or specific piece of functionality to which a parameter applies. Some Components are generic (batch, lookup, all) while others are very specific and refer to particular documents or even specific tabs or fields on documents.

Only members of the KR-SYS Technical Administrator or an equivalent application role can create or edit Component documents.

Document Layout

Figure 10.1. Component document

The Parameter Component document includes the Edit Parameter Detail Type tab.

Table 10.1. Edit Parameter Detail Type tab definition

Title	Description
Namespace Name	Required. Select the appropriate Namespace code for the parameter from the Namespace Name list or search for it from the lookup.
Component	Required. Enter the parameter component code or search for it from the Component lookup.
Component Name	Required. Enter the descriptive name of the parameter component being defined.
Active Indicator	Required. Leave checked to indicate that this parameter component is active and can be associated with parameters. Uncheck the box to inactivate this component and make it an invalid choice.

Administration > Configuration > Parameter Type

The parameter type broadly defines what a parameter is used for. In an application's base data there may be only two parameter types: parameters used for document validation  (such as business rules) and parameters used for System Configuration (customizing applications for your institution).

The Parameter Type document allows you to create new or edit existing parameter types. Code must be developed to support any additional types or changes to existing types.

Only members of the KR-SYS Technical Administrator or suitable application role can create or edit Parameter Type documents and they do not route for approval.

Document Layout

Figure 11.1. Parameter Type document

The Parameter Type document includes the Edit Parameter Type tab.

Table 11.1. Edit Parameter Type tab definition

Title	Description
Parameter Type Code	Required. Enter the code by which this parameter type will be identified.
Parameter Type Name	Required. Enter the long descriptive name for this parameter type.
Active Indicator	Required. Check the box to make this parameter type active and available for selection when creating parameters. Uncheck the box if you wish to inactivate this type of parameter and prevent its selection when creating new parameters.

Administration > Identity > Identity > Permission

The Permission document allows you to create new permissions or edit existing ones. The Permission Lookup allows you to search for and view existing permissions. You can view summarized information about the permission detail values as well as the roles that are currently associated with this permission.

Only members of an applicable application specific role can create or modify Permission documents. These documents do not route for approval.

Figure 12.1. Permission Lookup

Figure 12.2. Permission Lookup results

The Permission results display contains the fields described in the table below.

To view an Inquiry screen for a permission, select the Permission Name of the appropriate row in the search results. The Inquiry screen contains the same information as the Search Results in a slightly different format.

Figure 12.3. Permission Inquiry

Document Layout

The Permission document includes Document Overview, Permission Info, and Permission Details tabs.

Figure 12.4. Permission document

Permission Info Tab

This tab identifies the permissions with a unique system-assigned ID number, a template, namespace, name and description.

Figure 12.5. Permission Info tab

Table 12.3. Permission Info tab definition

Title	Description
Permission Identifier	Display-only. The unique, system-assigned ID number that identifies this permission.
Template ID	Required. Select the Template this permission is associated with. Templates identify broad permission types.
Permission Namespace	Required. An indicator that associates the permission with a particular application and module.
Permission Name	Required. A text name identifying this permission.
Permission Description	Optional. Enter a text description of what this permission does.
Active Indicator	Required (defaults to 'Yes'). Change the default selection if you wish this permission to be inactive. Inactive permissions will be disregarded by KIM when doing permission checks.

Permission Details Tab

This tab identifies the permission values that KIM needs to make this permission function. These values vary greatly depending on the type of permission being created. It is highly recommended that users view similar permissions (those with the same Template ID) and discuss Permission Details with technical resources to ensure values are entered correctly.

Figure 12.6. Permission Details tab

Table 12.4. Permission Details tab definition

Title

Description

Permission Details

Optional (though most permissions would require some details to be functional). Enter the permission details specific to this permission. Details should be entered as the name of the property followed by an '=' followed by the value of the property. When entering multiple details they should be separated by a hard return in the text box, such as: componentName=IdentityManagementPersonDocument propertyName=taxId

Administration > Identity > Reference > Phone Type

The Phone Type Lookup displays codes that identify various categories of phone numbers on the Person document.

Document Layout

Figure 14.1. Phone Type Lookup with results

Table 14.1. Phone Type Lookup results definition

Title	Description
Phone Type Code	Display-only. The code that identifies the type of phone number.
Phone Type Name	Display-only. The descriptive name for this type of phone number.
Display Sort Code	Display-only. An alphabetic value that determines the order in which phone types are displayed in the dropdown list.
Active Indicator	Display-only. Indicates whether this phone type is active (in which case the system displays it in the Phone Type dropdown list on the Person document).

Administration > Identity > Locations > Postal Code

The Postal Code Maintenance document defines the zip code by city and state. When the user chooses the Postal Code option from the Administration menu tab, the system displays the Postal Code Lookup screen. After the user selects a postal code or clicks the create new button, the system presents the Postal Code Maintenance document.

Document Layout

Figure 15.1. Postal Code Maintenance document, create mode

The Postal Code Maintenance document includes the Edit Postal Codes tab.

In edit mode, the Edit Postal Codes tab presents a display-only set of fields on the left and editable fields on the right in which the user may enter changes.

Table 15.1. Edit Postal Codes tab definition

Title	Description
Country Code	The country code for the country associated with the zip (postal) code.
Postal Code	Identifies a Postal Service code.
State	Required. The state associated with the zip (postal) code.
County Code	The unique identifying code for the county associated with the zip (postal) code.
City Name	Required. The name of the city associated with the zip (postal) code.
Active Indicator	Indicates whether the postal code is active or inactive. Remove the check mark to deactivate this postal code.

Administration > Identity > Identity > Responsibility

The Responsibility document allows you to create new responsibilities or edit existing ones. The Responsibility Lookup allows you to search for and view existing responsibilities. You can view summarized information about the responsibility detail values as well as the roles with which the responsibility is currently associated.

Only members of a qualified, application specific role can create or modify a Responsibility document and it does not route for approval. Information about the Responsibility document follows detailed information about the Responsibility Lookup below.

Figure 16.1. Responsibility Lookup

Figure 16.2. Responsibility Lookup results

The Responsibility results display contains the fields described in the table below.

To view an Inquiry screen for a responsibility, select the Responsibility Name of the appropriate row in the search results. The Inquiry contains the same information displayed in the search results in a slightly different format.

Figure 16.3. Responsibility Inquiry

Document Layout

The Responsibility document includes Document Overview, Responsibility Info, and Responsibility Details tabs.

Figure 16.4. Responsibility document

Responsibility Info Tab

This tab identifies the responsibility with a unique system-assigned ID number, a namespace, name and description.

Figure 16.5. Responsibility Info tab

Table 16.3. Permission Info tab definition

Title	Description
Responsibility Identifier	Display-only. The unique, system-assigned ID number that identifies this responsibility.
Responsibility Namespace	Required. An indicator that associates the responsibility with a particular application and module.
Responsibility Name	Required (defaults to 'Review'). A text name identifying this responsibility. Note that this is the only valid value for this document. You cannot use the Responsibility document to establish or modify Responsibilities with the name 'Resolve Exception' -these require a technical resource to modify.
Responsibility Description	Optional. Enter a text description of what this responsibility does.
Active Indicator	Required (defaults to 'Yes'). Change the default selection if you wish this responsibility to be inactive. Inactive responsibilities will be disregarded by Workflow.

Responsibility Details Tab

This tab identifies the document type and route node associated with this responsibility. It also defines other responsibility information such as whether or not the action details reside at the role member level.

Figure 16.6. Responsibility Details tab

Table 16.4. Responsibility Details tab definition

Title	Description
Document Type Name	Required. Enter the name of the document type this responsibility is associated with or use the Document Type Lookup to search for and select a value.
Route Node Name	Required. The name of the route node at which this responsibility should be invoked.
Action Details at Role Member Level	Required (defaults to False). Check this box if you want role members associated with this responsibility to be able to define the type of workflow action they will need to take in order to fulfill the action request it generates.
Required	Required (defaults to False). Check this box if you wish documents of this type to go into Exception status if this responsibility does not generate at least one action request.
Qualifier Resolver Provided Identifier	Optional. In most cases this field should be blank. It can be used as an additional identifier KIM will use to choose the correct responsibility information for a given doc type. The document type must pass the provided identifier to KIM.

Administration > Identity > Identity > Role

The Role document allows you to create a new KIM role and edit an existing role. Each role aggregates a specific set of permissions and responsibilities and allows you to assign members to the role. Rice and Rice Applications contain many existing roles that your institution may want to use as is, but you may also change existing roles and add new ones by using the Role document.

The purpose of each role is defined by its associated permissions and responsibilities. Roles are classified by types that generally indicate the type of permissions and responsibilities with which they can be associated.

Document Layout

Creating New Roles

When you click the Create New button, the system displays the KIM Type Lookup. You must search for and select an existing Type in order for the system to generate a new Role document.

Note

Note that while the KIM Type Lookup is used when creating new groups and roles, not all KIM types are valid for both. When using this Lookup, you may receive different results depending on the KIM types that are valid for the entity you are working with.

Figure 17.1. KIM Type Lookup

Role Document

The Role document includes Document Overview, Overview, Permissions, Responsibilities, and Assignees tabs.

Figure 17.2. Role document

Overview Tab

This tab identifies the role with a unique system-assigned ID number, a namespace and a name. Each role also has a type which tends to match the types of permissions and responsibilities associated with it.

Figure 17.3. Role Overview tab

Table 17.1. Overview tab definition

Title	Description
Role	Display-only. The unique, system-assigned ID number that identifies this role.
Type Name	Display-only. Because the role type normally reflects the type of qualifiers this role will need to collect when members are added, this name usually identifies the general types of permissions and responsibilities associated with it. When creating a new role, you must select its type before the system will generate the document.
Namespace	Required. An indicator that associates the role with a particular application and module.
Role Name	Required. The common descriptive name by which this role is known.
Active	Check this box to indicate that this role is active and is, therefore, to be included by KIM when evaluating permissions and responsibilities. Uncheck the box to indicate that this role is inactive
Description	Optional. A longer text box for describing the needs or uses of the role.

Permissions Tab

This tab identifies the permissions associated with this role. Permissions authorize specific actions in the system with which they are associated. A role can have any number of permissions (including no permissions) associated with it.

Figure 17.4. Permissions tab

Table 17.2. Permissions tab definition

Title	Description
Add Permission ID	To add a permission to this role, enter the appropriate permission ID or search for and select a value using the Permission lookup
Add	Click the Add button to add the selected permission to this Role document.

After you add a permission to the document, the system displays additional information about the permission.

Note

Permissions cannot be edited via the Role document. Use the Permission document to perform this function.

Table 17.3. Permissions tab definition, results set

Title	Description
Permission Namespace	Display-only. The Namespace identifies the application and module associated with this permission.
Permission Identifier	Display-only. The unique system-assigned ID number for this permission.
Permission Name	Display-only. The descriptive name of this permission. This often identifies, in general terms, what the permission authorizes.
Permission Detail Values	Display-only. The document types, tabs and/or fields this permission authorizes. Not all permissions have detail values.
Active Indicator	Display-only. Indicator showing whether this permission is active within the system or not.
Actions	Click the Delete button to remove this permission from the role. You may delete a permission only if it has not yet been saved to the database (i.e., you added it to this role but have not yet submitted the document).

Responsibilities Tab

This tab identifies the responsibilities associated with this role. Responsibilities define the workflow actions that will be requested of the role. A role can have any number of responsibilities (including none) associated with it.

Figure 17.5. Responsibilities tab

Table 17.4. Responsibilities tab definition

Title	Description
Add Responsibility ID	To add a responsibility to this role enter the responsibility ID or search for and select a value using the Responsibility lookup
Add	Click the Add button to add the selected responsibility to this Role document.

After you add a responsibility to the document, the system displays additional information about this responsibility.

Note

Responsibilities cannot generally be edited via the Role document, but some responsibilities have associated attributes that you must define at the role level.

Figure 17.6. Responsibility details displayed

Table 17.5. Responsibilities tab definition, continued

Title	Description
Responsibility Namespace	Display-only. The Namespace identifies the application and module associated with this responsibility.
Responsibility Identifier	Display-only. The unique system-assigned ID number identifying this responsibility
Responsibility Name	Display-only. The descriptive name of this responsibility. For most Responsibilities the name is 'Review.
Responsibility Detail Values	Display-only. This identifies more specific information about the responsibility. Responsibility Detail Values are formatted in a standard way with the following attributes delimited by commas: Route Node: The workflow route level at which this responsibility is invoked. Document Type: The document type for which this responsibility generates workflow requests. Action Details at Role Member Level:  A True or False indicator that defines where the details of this workflow action request are defined. If the value is 'True' then action details will be collected when Members are assigned to the role. If the value is 'False' then the action details must be collected when this responsibility is assigned to a role (see Assigning Action Detail Values elsewhere in this section.) Required: Indicates if the routing represented by this responsibility should be required. If this is set to True and the responsibility fails to generate an action request (perhaps because no one is assigned to the associated Role) then the document will go into Exception status. If this routing is optional this value will be False and the document will simply skip this responsibility if no requests are generated.
Active Indicator	Display-only. Indicator showing whether this responsibility is active within the system or not.
Actions	Click the Delete button to remove this responsibility from this role. You can delete a responsibility only if it has not yet been saved to the database (i.e., you have added it to this role but have not yet submitted the document).

Assigning Action Detail Values

When adding a responsibility with an Action Detail Values at Role Member Level value of 'False,' you must complete additional fields in a Responsibility Action sub-section. The system displays this section immediately beneath the responsibility you've just added.

The fields in this sub-section define the type of action requests generated for and the general workflow behavior associated with this responsibility. Entries in these fields cause the system to generate the same type of action requests for all members of this role and handle actions by all members in the same way.

Figure 17.7. Responsibility Action details

Table 17.6. Responsibility Action Subsection definition

Title	Description
Name	Display-only. The namespace and name of the responsibility associated with these action details.
Action Type Code	Required. The type of action request that the system is to generate for this responsibility. Options include Approve, FYI and Acknowledge.
Priority Number	Optional. If multiple requests are generated at the route node specified on this responsibility, this value determines in the order in which the system will generate these requests. The system processes requests with lower priority numbers before processing requests with higher numbers. Requests with no number are treated as a priority of 1.
Action Policy Code	Required. This value determines what happens if multiple members of this role receive the same action request and one of them takes the action. This currently only applies in situations where a single action request is generated to multiple role members (i.e. the action details exist at the role level) or  a role is assigned to another role and these nested role members receive an action request. For example, if a role with a responsibility with action details defined at the role level, has three members assigned, all of these members receive the action request defined here; this code determines what the system does when one of them takes action on the document. A value of FIRST indicates that the first role member to take action on the document will automatically clear all the requests for this responsibility that may be in other role member's action lists. A value of ALL indicates that each role member must take individual action to clear his or her requests.
Force Action	Check the box to indicate that each user must take this action for this request even if the user has already previously taken action on this document. Leaving the box unchecked allows a request to be immediately fulfilled if the role member has previously taken action on this specific document.

Assignees Tab

This tab contains all members who belong to this role. You may also use the tab to add new members and edit the values associated with existing members.

Figure 17.8. Assignees tab

Table 17.7. Assignees Member tab definition

Title	Description
Type Code	Required. Role members can be principals (as defined on the Person document), groups or other roles. Select the type of member you want to add to this Role.
Member Identifier	Required. Enter the ID of the member you want to add or use the lookup to search for and select a valid value. The lookup directs you to the Principal, Group or Role lookup based on your Member Type Code selection.
Namespace Cd	Display-only. Identifies the namespace code associated with this role member. Note that only groups and roles will display a namespace code.
Name	Display-only. Identifies the name of the member being assigned to this role.
Full Name	Display-only. Identifies the default, full name of the member being assigned to this role.
Active From Date	Optional. Allows you to qualify this member's association with this role by date. Entering a from date will define the earliest date on which this member is a valid member of this role.
Active To Date	Optional. Allows you to deactivate a member's association with a role on a specific date. The date you enter defines the date the user is no longer a member of this role. You cannot delete or inactivate role members. To remove a member from a role, specify an active to date.
Actions	Click the Add button to add this member to the role.

Note

Additional fields may be required, such as Chart Code or Organization Code, depending on the role type selected.

Caution

Note that when assigning roles to other roles (nesting roles), qualifying values are not required. Some roles in applications may contain special logic to derive the required qualifiers from the nested role itself without qualifiers being specified. You may always specify qualifying values for a nested role and should do so unless you know the role being assigned contains logic to derive the qualifiers from the nested role. Roles without the proper qualifiers can cause problems throughout your applications. Please consult with an application technical resource if you are unsure of whether or not to provide qualifying values when assigning a role to another role.

Delegations Tab

This tab identifies identifies delegates associated with the role. Delegates are users that a member of this role has authorized to have the same permissions and take the same actions as the member is authorized to take.

The Assignees Tab dealing with Delegates is slightly different as detailed in the following table. Note that if the members of a role require qualifying values, the delegation requires these values as well. In most cases, delegates must have the same qualifiers as the role member they are associated with.

Figure 17.9. Delegations tab

Table 17.8. Delegations tab definition

Title	Description
Role Member	Required. Use the lookup to search for and return the member of this role you wish to create a delegate for.
Member Type Code	Required. Delegates may be principals (as defined on the Person document), groups or other roles. Select the type of delegate you want to add to this role.
Member Identifier	Required. Enter the ID that identifies the delegate you want to add or use the lookup to search for and select a valid value. Note that the lookup will direct you to the Principal, Group or Role lookup based on your Member Type Code selection.
Member Namespace Code	Display-only. Identifies the namespace associated with the selected delegate. Note that only delegations to groups or roles will display a member namespace code.
Member Name	Display-only. Shows the name of the selected delegate.
Active From Date	Optional. If you want you can qualify this delegate's association with this role by date. Entering a from date will define the earliest date on which this delegate is a valid delegate for this role.
Active To Date	Optional. Allows you to deactivate a delegate's association with a role on a specific date. The date you enter defines the date on which the user is no longer a delegate for this role. You cannot delete or deactivate delegates. To remove a delegate from a role, enter an active to date.
Delegation Type Code	Required. Select 'Secondary' or 'Primary. Note that this selection only applies to responsibilities associated with the role and indicates if the delegate will receive documents directly in their action list (Primary) or may choose to view documents in their action list using the secondary delegate dropdown (Secondary).
Actions	Click the Add button to add this delegate to the role.

Note

Additional fields may be required, such as Chart Code, depending on the role type selected.

Administration > Identity > Locations > State

The State Maintenance document defines the U.S. Postal Service codes used to identify states. When the user chooses the State option from the Administration menu tab, the system displays the State Code Lookup screen. After the user selects a state code or clicks the create new button, the system presents the State Maintenance document.

Document Layout

Figure 18.1. State Maintenance document, create mode

The State Maintenance document includes the Edit States tab.

In edit mode, the Edit States tab presents a display-only set of fields on the left and editable fields on the right in which the user may enter changes.

Table 18.1. Edit States tab definition

Title	Description
Country Code	A unique identifying code assigned to the country of which this state is a part.
State Abbreviation	The state abbreviation.
State Name	Required. The full name of the state associated with the state abbreviation.
Active Indicator	Indicates whether the state code is active or inactive. Remove the check mark to deactivate the state code.
