Table rice-2.1.1.krms_func_t Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
FUNC_ID varchar 40
krms_cntxt_vld_func_t.FUNC_ID Implied Constraint R
krms_func_ctgry_t.FUNC_ID KRMS_FUNC_CTGRY_FK1 R
krms_func_parm_t.FUNC_ID KRMS_FUNC_PARM_FK1 R
NMSPC_CD varchar 40
NM varchar 100
DESC_TXT varchar 255  √  null
RTRN_TYP varchar 255
TYP_ID varchar 40
krms_typ_t.TYP_ID KRMS_FUNC_FK1 R
ACTV varchar 1 Y
VER_NBR decimal 8 0

Table contained 0 rows at Tue Sep 18 22:24 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
FUNC_ID Primary key Asc PRIMARY
NM + NMSPC_CD Must be unique Asc/Asc KRMS_FUNC_TC1
TYP_ID Performance Asc KRMS_FUNC_TI1

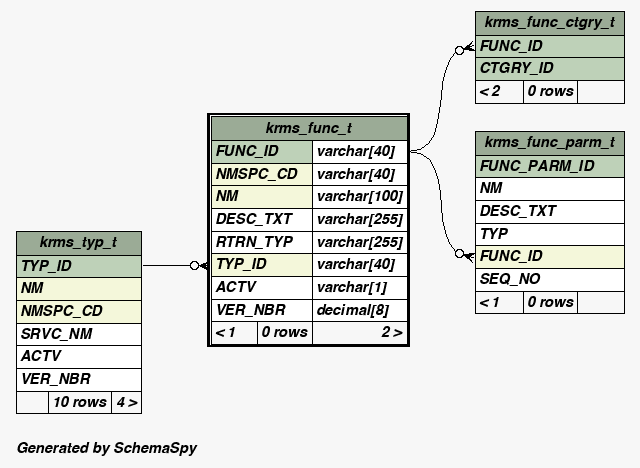

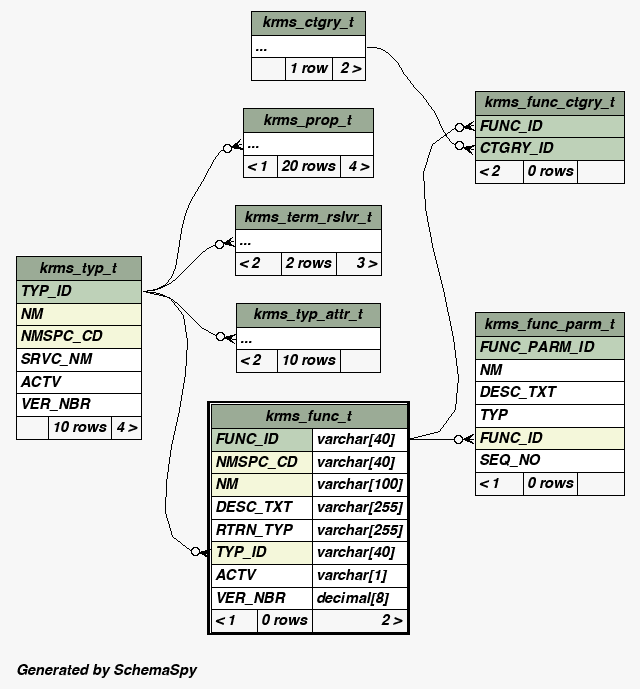

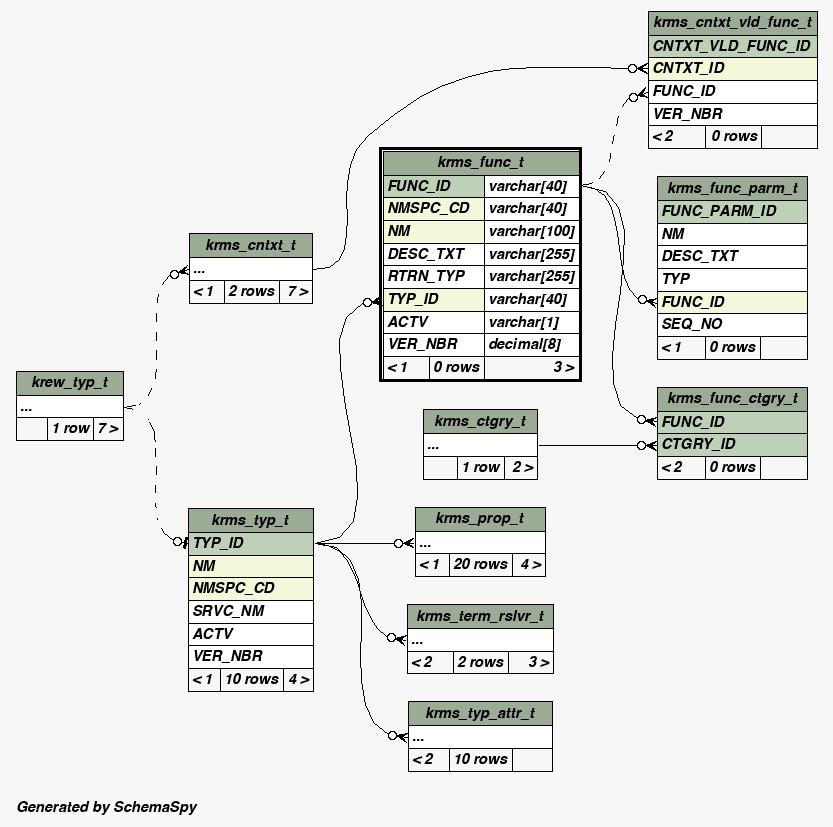

Close relationships  within of separation:
